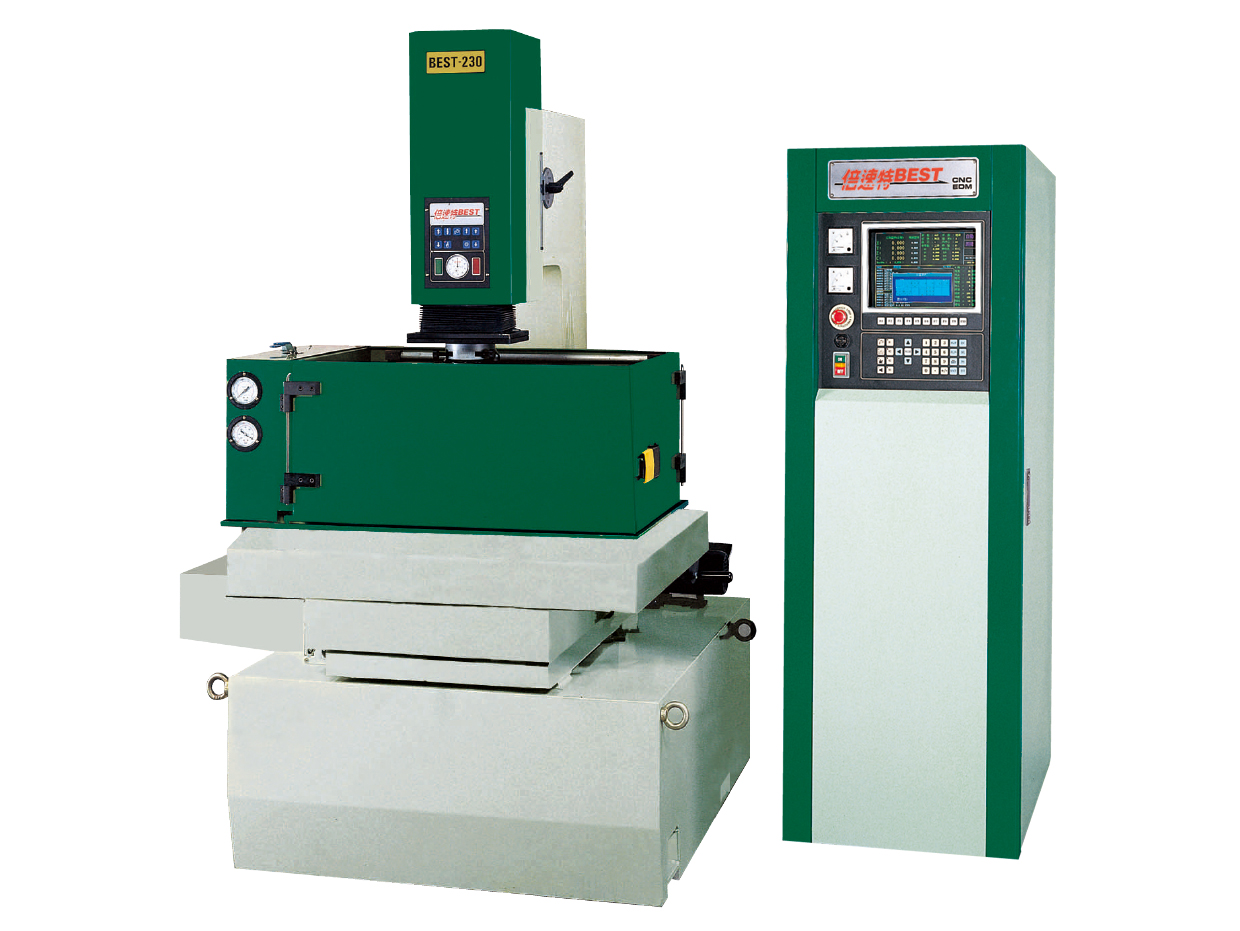

BEST EDM CNC230/348

Model ID:BEST-230/348

1. The electric control box adopts front and rear wiring, and the Industrial Technology Research Institute system is modularized as a whole. The upper and lower layers are designed to separate the high-temperature components and low-temperature electronic components into an independent dual-circulation cooling system, which is stable and durable.

2. Axial transmission (X, Y, Z) all use precision linear rails, ball screws and optical rulers, and the repeatability of positioning can reach less than 1mu.

3. Special processing of tungsten steel is possible.

4. Three axes can be driven simultaneously.

5.Sparking roundness accuracy <1um.

6.With simulative function to prevent mac-hining failure.

7.Electrode wear rate <1%.
